dPOFLEX® EP02 Explosion Proof Motor Pump_Longer Pump

Parameters	EP02 or EP02-B
Max. flow rate(Single Channel)	6L/min
Pump speed	60rpm-600rpm
Speed resolution	0.01Hz
Housing material	EP02: Cast iron; EP02-B: 304sst protective cover
Display	LED on the frequency converter for parameters
Work mode	Continuous mode
Control mode	Keypad control; External control; Communication control ( with frequency converter outside the hazardous location)
Calibration function	/
External control	Control function: start/stop，running direction，speed; Pump status output: speed，alarm
Communication control	Interface: RS485，Protocol: Modbus RTU
Dimensions (L x W x H)	EP02: 414×292×340(mm); EP02-B: 424×292×340 (mm)
Power supply	AC380V/0.18KW，5Hz~60Hz，AC 220V/0.18KW，5Hz~60Hz
Operating temperature	5~40℃
Relative humidity	relative humidity＜90%
IP rating	IP55 (motor only)
Weight	EP02: 40kg; EP02-B: 45kg

Parameters

EP02 or EP02-B

Max. flow rate(Single Channel)

6L/min

Pump speed

60rpm-600rpm

Speed resolution

0.01Hz

Housing material

EP02: Cast iron; EP02-B: 304sst protective cover

Display

LED on the frequency converter for parameters

Work mode

Continuous mode

Control mode

Keypad control; External control; Communication control ( with frequency converter outside the hazardous location)

Calibration function

External control

Control function: start/stop，running direction，speed; Pump status output: speed，alarm

Communication control

Interface: RS485，Protocol: Modbus RTU

Dimensions (L x W x H)

EP02: 414×292×340(mm); EP02-B: 424×292×340 (mm)

Power supply

AC380V/0.18KW，5Hz~60Hz，AC 220V/0.18KW，5Hz~60Hz

Operating temperature

5~40℃

Relative humidity

relative humidity＜90%

IP rating

IP55 (motor only)

Weight

EP02: 40kg; EP02-B: 45kg

Disclaimer

感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。

I understand and acknowledge the contents of the above statement。

Pump Drive	Product model	EP02	EP02-B
	Housing material	Cast iron	304ss protective cover
	Pump speed	60rpm-600 rpm
	Control mode	Frequency converter (to be used outside the hazardous location)
	Protection type	Ex d IIB T4 Gb
	Power supply	3-phase AC 380V, or 3-phase AC 220V
	Frequency range	5Hz-60Hz

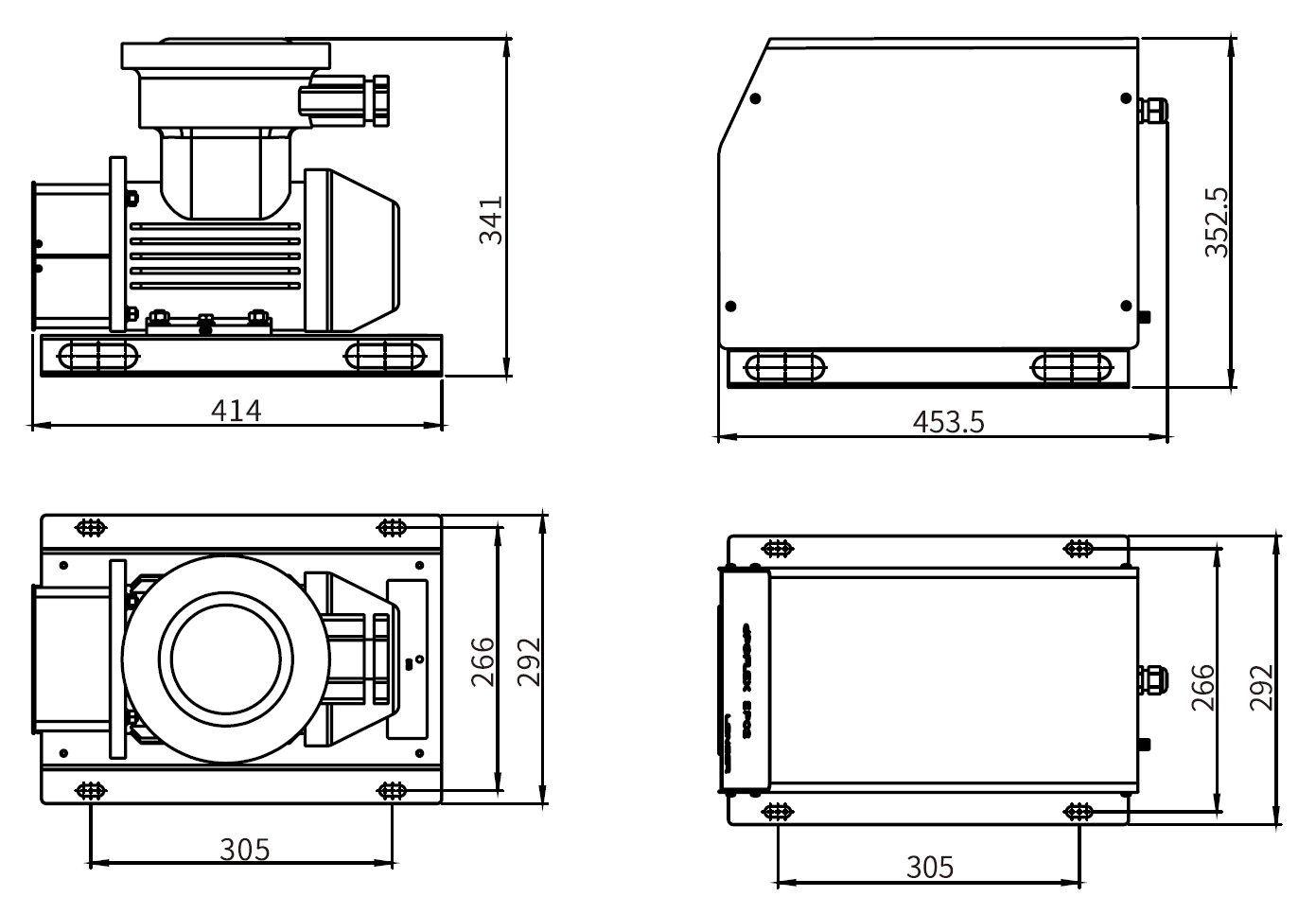

	Dimension (LxWxH)	414×292×340mm (without pump head)	424×292×352mm (without pump head)
	Rated power	0.18kw
	IP rating	IP55
	Woking condition	Temperature: 5 - 40℃, Relative humidity ≤90%RH
	Weight	About 40kg (without pump head)	About 45kg (without pump head)
Frequency Converter (Optional)	1-phase converter	Model: VFD4A8MS21ANSAA, input: 1-phase AC220V
	3-phase converter	Model: VFD2A7MS43ANSAA, input: 3-phase AC380V
	Running direction	CW/CCW
	Speed resolution	0.01Hz
	Display	LED
	Control mode	Keypad control, remote control and communication control
	External control	Output frequency could be controlled by analog signal: 0-10V, 0-20mA, 4-20mA; Manual/remote control mode, pump running direction, pump start/stop, could be controlled by digital signal
	Status output	Output 0-20mA or 4-20mA to indicate the frequency to pump; Output relay signal to indicate pump status such as running/stop, direction or alarm
	Communication control	RS485接口，Modbus RTU协议

Product Model (Product Code)	Pump Head	Tubing	Reference Flow Rate (mL/min)

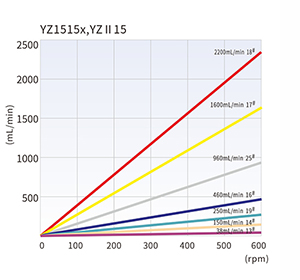

dPOFLEX®EP02 dPOFLEX®EP02-B	(1、2、3、4) x YZ1515x (3 rollers)	13^#,14^#,19^#,16^#,25^#,17^#,18^#	4-2200
	(1、2、3、4) x YZ1515x (6 rollers)	13^#,14^#,19^#,16^#,25^#,17^#,18^#	4-1450
	(1、2、3、4) x YZII15	13^#,14^#,19^#,16^#,25^#,17^#,18^#	4-2200

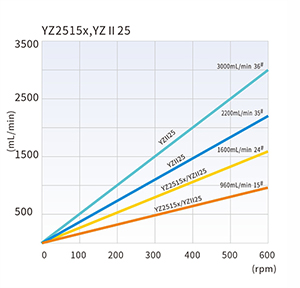

	(1、2、3、4) x YZ2515x	15^#,24^#	100-1600
	(1、2、3、4) x YZII25	15^#,24^#,35^#,36^#	100-3000

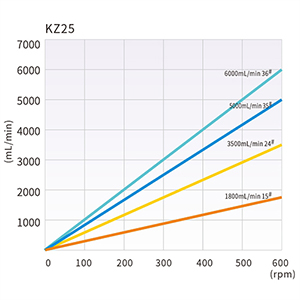

	(1、2) x KZ25	15^#,24^#,35^#,36^#	200-6000
